KC’s Gravity® LED G4 TOYOTA TACOMA LED FOG PAIR PACK SYSTEM - #500

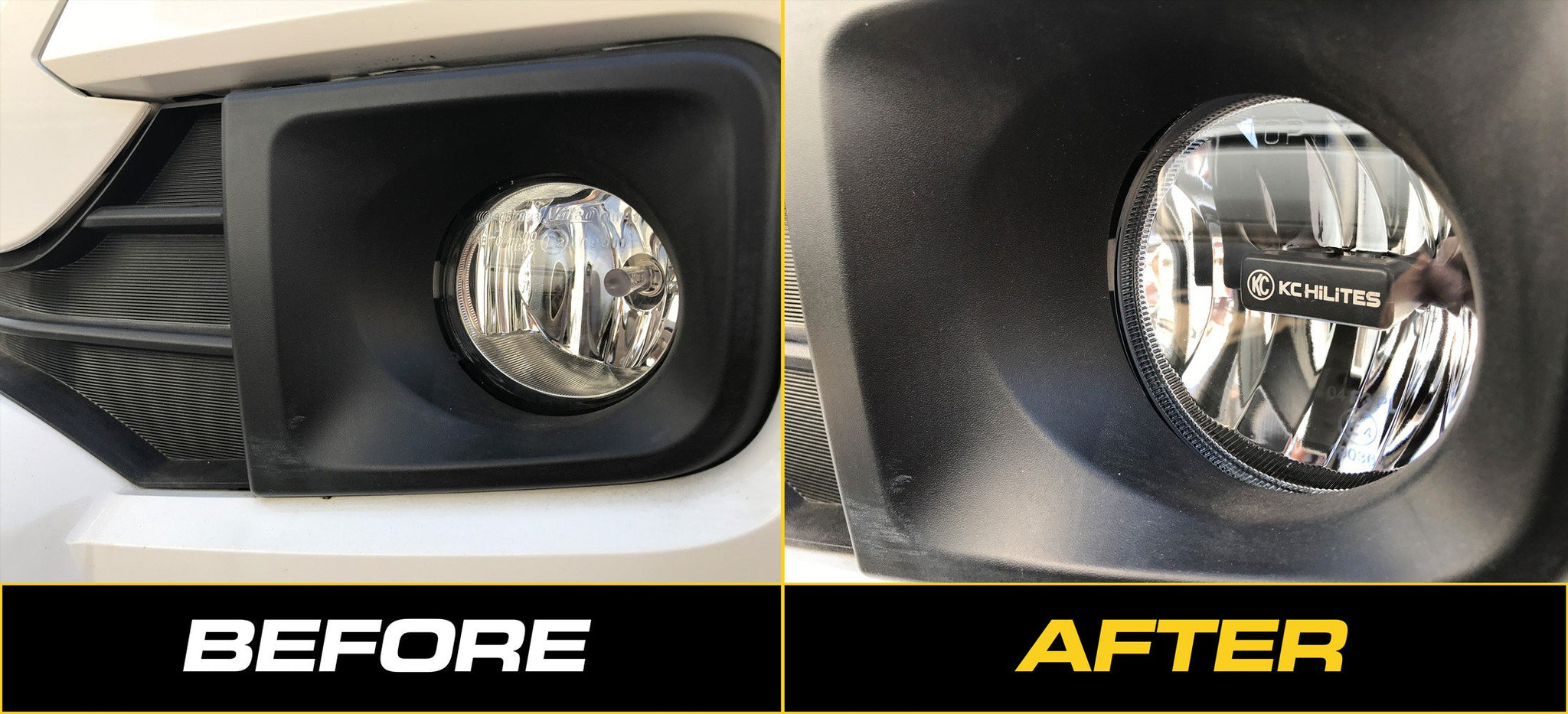

KC’s Gravity® G4 Toyota LED fog light system mounts directly to your Toyota, Lexus or Scion’s OEM fog lamp locations. Give your vehicle an LED upgrade and a clean, factory installed look without having to drill or cut your bumper.

The Details

FEATURES -2 x 10W 4" Gravity® LED G4 Fog Lights -Lightweight Magnesium Housing for Maximum Heat Dissipation -Designed to fit various 2006-2016 Toyota, Lexus and Scion Vehicles -Clear or Amber LED -Shatter Resistant Polycarbonate Lens -Fog Beam Pattern (SAE & ECE Street Legal)

LIGHT PERFORMANCE(PER LIGHT) -Raw Lumens: 866 lm -Compliance: Fog beam meets SAE J583 & ECE-R19 Street Legal -Lux @ 10 Meters: 150 lx -Candela: 15,000 cd -Beam Distance (Meters): 245m

SPECIFICATIONS(PER LIGHT) -Wattage: 10W -LED Source: CREE XP-G R4 LED -Color Temperature: 5000K -Amp Draw: .74A -Voltage: 9V-32V -IP Rating: IP69 -Product Dimensions: W - 3.94" x H - 3.94" x D - 3.23"

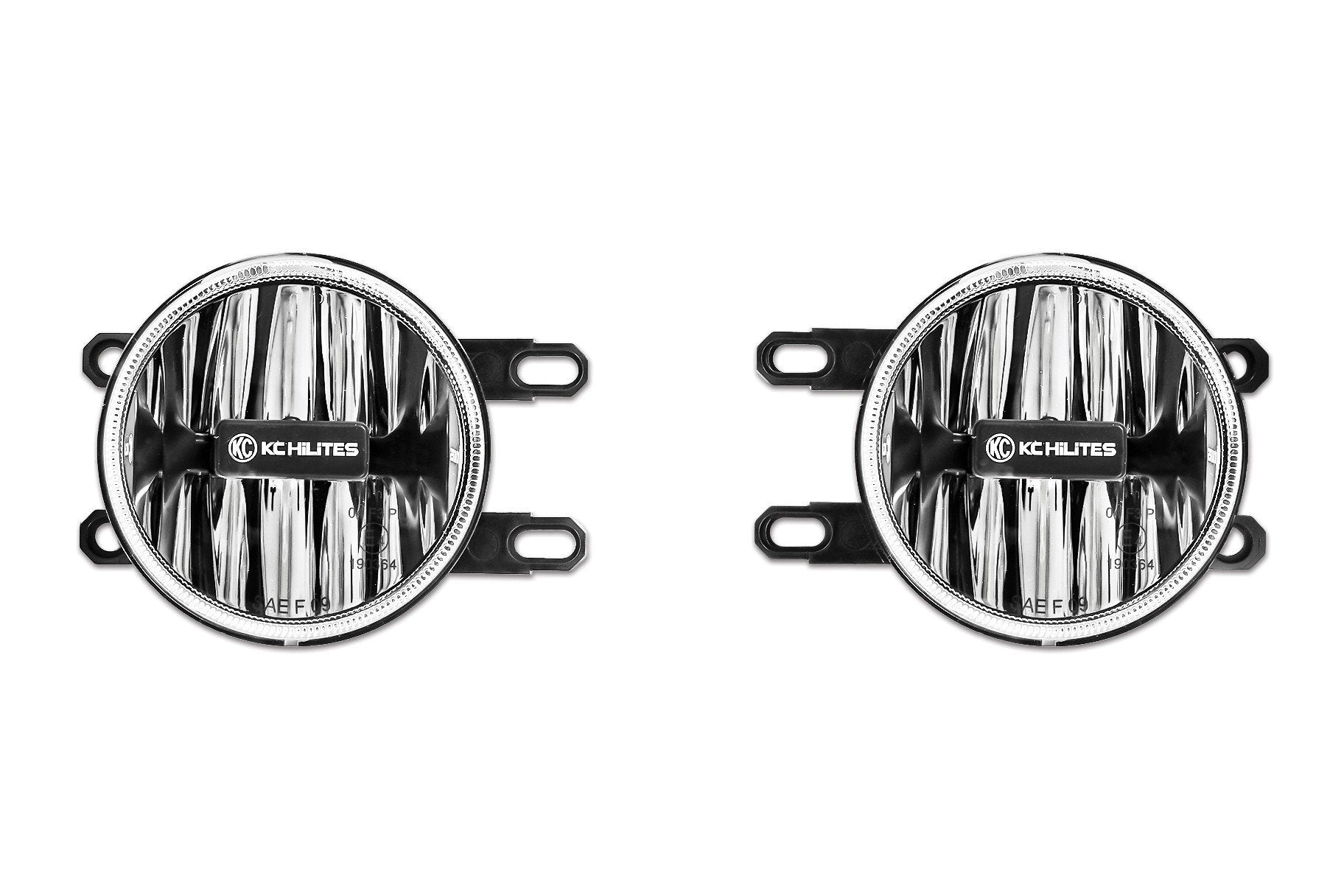

Parts Included -(2) 10W 4" Gravity® G4 LED Fog Lights -(2) Toyota Fog Light Mounting Brackets -Factory Plug-n-Play Connector for OE Toyota Wiring Harness and Switch ***NOTE*** Plug-n-Play kit for Tacoma's fitted with factory fog lights or switch. Factory OE Toyota parts needed for compatible operation: -Toyota Switch: 2012-16 Tacoma OE #84160-04020 -Toyota Relay: 2012-16 Tacoma OE #9008087026

TOYOTA, LEXUS AND SCION OE FOG LIGHT MOUNTING Toyota arguably makes some of the toughest and most dependable vehicles on the road today, offering versatile performance and unrivaled durability, much like our Gravity G4 LED. Our G4 LED’s pair perfectly with various 2006-2016 Toyota, Lexus and Scion models, mounting directly to factory OEM bolt holes delivering extremely powerful and balanced fog beam output.

KC's Gravity G4 Tacoma kit also works with various factory Toyota, Lexus, and Scion vehicles equipped with OE Fog Light Systems:

• 2010-2014 Toyota 4Runner

• 2012-2016 Toyota Tacoma

• 2006-2012 Toyota Rav4

• 2013-2014 Scion TC

• 2013-2015 Lexus: IS,ES,GS,RX,LX

Gravity®EXTREME OUTPUT AND EFFICIENCY The 4" Gravity® LED Fog Lights are powered by KC's patented Gravity® Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx @ 10m using only .74 Amps per light. Our GRD system aims the LEDs into the precision designed reflectors to capture all the light and project it forward. This results in a more controlled and far reaching beam pattern.

STREET LEGAL FOG BEAM PATTERN AND ADVANTAGES Fog Beam- Provides a low, wide angle light pattern that increases short-range visibility. Ideal pattern for lighting pathways close to ground in low visibility conditions like dust, fog, snow and rain. Also taking advantage of Amber LEDs, our fog lights produce the ideal color wavelength, creating greater visual contrast to penetrate through thick fog and misty conditions.

STRENGTH & DURABILITY Designed from high quality, light weight magnesium housing and UV treated shatter resistant polycarbonate lens in a self contained IP69 rated light housing, impermeable to dust and moisture.

Available Part Numbers

• Gravity® LED G4 TOYOTA TACOMA LED FOG PAIR PACK SYSTEM - #500

• Gravity® LED G4 TOYOTA TACOMA AMBER LED FOG PAIR PACK SYSTEM - #501
